Gravity Filling Type

PRODUCT IMAGES :

PROCESS OVERVIEW :

The filler adopts gravity filling type and is suitable for filling fresh milk, drinking yogurt, fresh juice (content with fiber) and temperature sensitivity products.
The design of this filler have two models : General type and auto. CIP type. There is a safety cover surrounding the machine to isolate dust and external object. The filler can equip with HEPA on the machine top to be more suitable for fresh cool storage products.

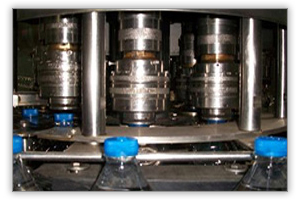

RINSING :

The design of gripping head which has no spring is to reduce the dirt accumulation and is easy to maintain.

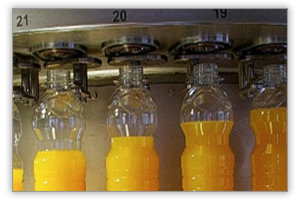

FILLING :

Flexible diaphragms equipped in the filling pipe is a patent design, when the filling pipes stretch and retract, it ensures the sealed effect, so that filling procedure can insulate external pollution and control large flow in order and avoid bottle shape changes due to pressure.

AUTO CIP MECHANISM :

When equipments will do ClP cleaning, fintly lift up the filling bowl, then squish the groove. After all preparations I are finished, the equipmenti can execute CIP (cleaning in place) and COP (cleaning out of place). Filling valves are not I required to be removed to during the cleaning pmcess.
The filler adots gravity filling type and is suitable for filling fresh mil, drinking yogurt, fresh juice (content with fiber) and temperature sensitivity products. The designs of this filler have two models : General Model and Auto. CIP Model. There is a safety cover surrounding the machine to isolate dust and external object. The filler can equip with HEPA on the machine top to be moresuitable for fresh cool storage products.
