Carton Sealers

PRODUCT IMAGES :

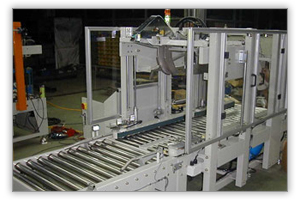

EC 705 APS

EC 705 P

EC 705 A F3

EC 705

PRODUCT VIDEOS :
PROCESS :
Corrugated shipper carton filled with products enters the sealing machine, the machine has the option of closing the four top flaps and subsequently BOPP tape is applied on the top and bottom of the shipper carton. By utilizing continuous motion of synchronous roller & motor drive the system can seal cartons upto 80 kg at a speed of 20 cartons per minute. Our carton sealers provide consistent reliable seals on your carton every single time.

FLEXIBILITY :
Flexibility is inherent in every Concept Packaging Product. EC 703 is a Standard and most popular model which can accommodate a range of cartons. The four top flaps have to be folded manually and fed into the machine for sealing.
EC 705 is functionally similar to the standard machine with the option of closing the top flaps automatically. Both the models have newly designed externally accessible adjustment points for changing over to different sizes, now easier and quicker than ever.
EC 705 APS If you have multiple production lines instead of using multiple carton sealers,our Random Carton sealer with top flap closer model can be your singular solution for these lines. Random Carton sealer senses the entering carton, signals the tape head to move to position. During the active motion of the cartons, the centering of system assures squaring of the carton & precise positioning of the cartons for proper sealing.
EC 905 HMA -This machine uses hot melt gluing applicator to glue the top four flaps instead of the conventional BOPP Tape.

RELIABILITY :
Our carton sealers are designed, engineered and manufactured for high reliability, durability & to perform under challenging production conditions. And like every Concept Packaging product our sealers are backed by our industry leading service support and ever responding to our customer needs 7 days a week, 365 days a year.
Optional Accessories: Carton counter, Infeed & Outfeed Roller conveyors, Power saver: Auto-stop on/off mechanism, On-line batch coder, Auto coder, on-line check weigher.

*The machine can be customized to your specific carton dimension.

  L B H
MIN 150mm 160mm 80mm
MAX Ulimited 450mm 550mm
Air Supply :
♦ 6 bar pressure for Random machine & flap closer model only

Tape Sizes :
♦ 48 mm, 65 mm, 72 mm, customized to your requirement

PRODUCT DETAILS :
Machine No. Description
EC 702 Side Belt Driven Case Sealer
EC 703 Standard Machine.
EC 705 Carton sealer with flap closer
CP - R12 Random machine Carton Sealer
CP -R18 High speed random carton sealer
CP-EDGE 412 Edge Sealer
CP-SST 515 Seal and Strap
