High Speed Shrink

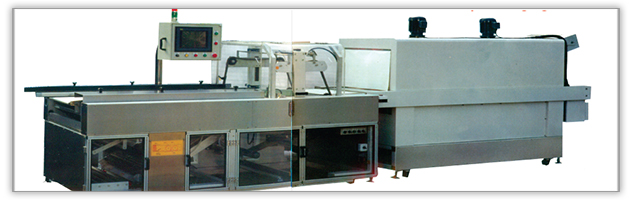

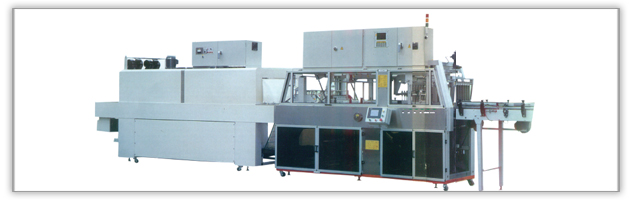

PRODUCT IMAGES :
PRODUCT VIDEOS :
PROCESS :
High speed shrink sealing machine can be integrated with an automatic production line for shrink wrapping , adopts a photo electricity for inducing the products, there are two feed-in modes, automatic or manual. It uses fold film on rolls, and the machine will seal the other side automatically .According to different configurations for the machine and different products, the maximum packing speed is up to 45pcs/min
PRODUCT DETAILS :
Machine CP L sealer / side sealer
Specifications CP L Sealer CP L Shrink Tunnel
 Power supply  220V, 1∮, 50-60Hz 380V, 3∮, 50-60Hz
 Power  3kw 16kw
 Packing size  L+H=∞ x W+H≤450mm(H≤150mm) L1200×W450×H250mm
 Product W+H /tunnel size  W520mm L1500×W500×H300mm
 Packing speed  20-60pcs/min 20-60pcs/min
 Air compressing  5.5kg/cm³ /
 Max current  10A 32A
 Net weight  800kg 650kg
 Machine dimension L2050×W1580×H1740mm L2000×W1100×H1250mm
